슬리터 폭 1524 미리 두께 3.43 미리
WE OFFER THE FOLLOWING SUBJECT TO PRIOR SELL,'AS IS -
WHERE IS'
WITHOUT ANY WARRANTY,EXPRESSED OR IMPLIED

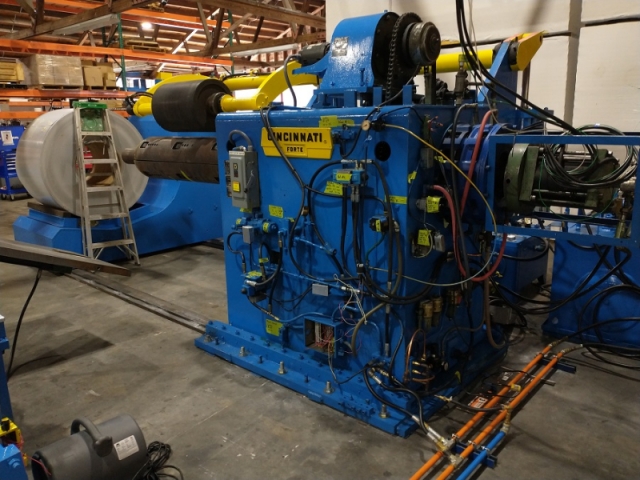

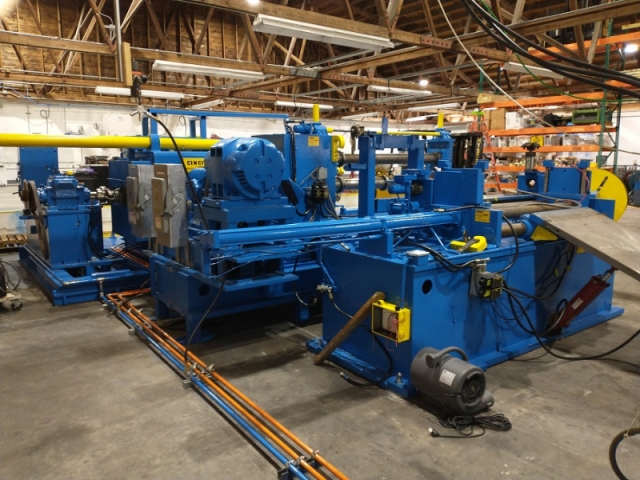

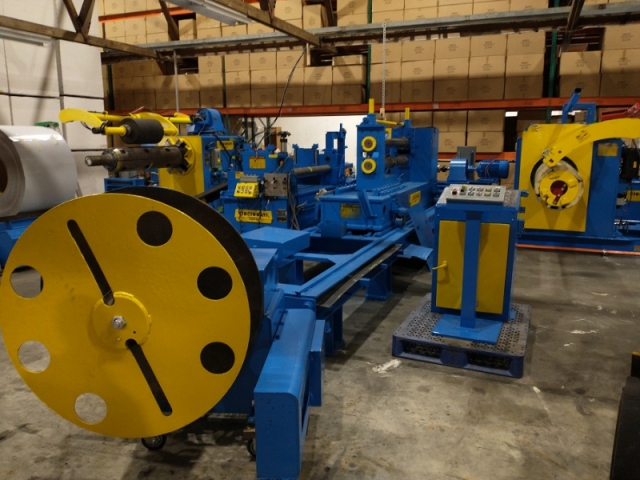

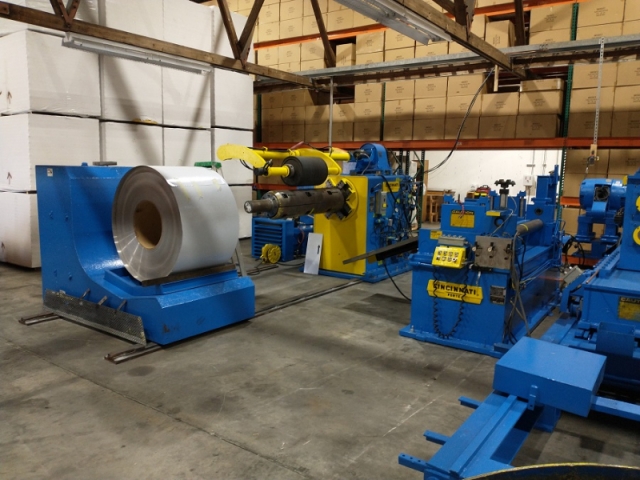

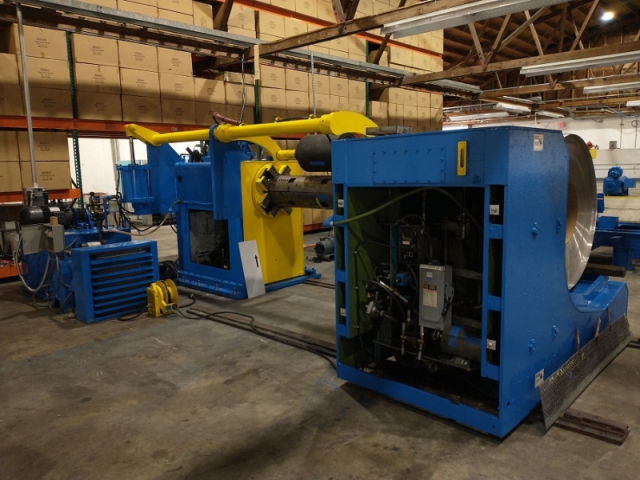

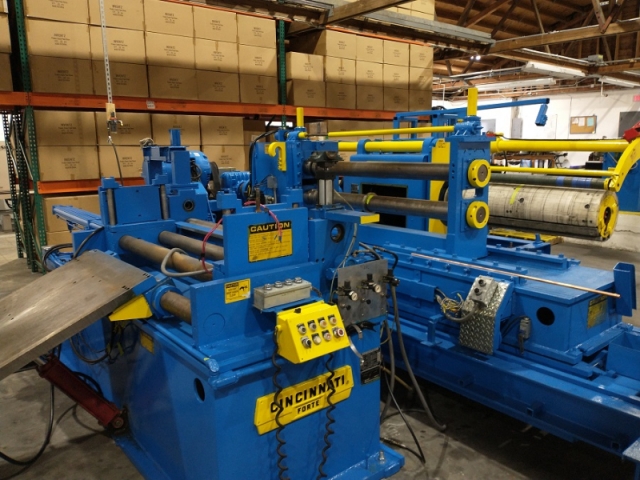

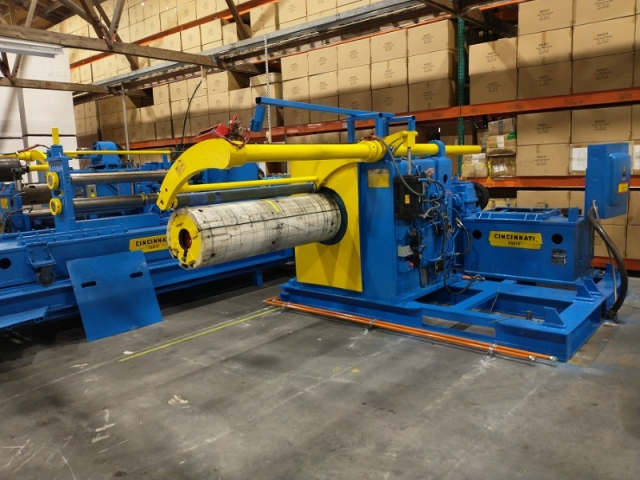

60" x .135" x 20,000Lb Cincinnati - Forte
Loop Slitting Line
Make:Cincinnati - Forte
Material Width:12" - 60"
Material Thickness:.010" - .135"
Weight Capacity:20,000Lb
Coil ID:16" - 24"
Coil OD:72"
Speed:600 feet per minute
Direction:Left to Right
Entry 4-Arm Turnstile
Powered Rotation
C-Hook Slot
Entry L-Type Coil Car
Hydraulic Lift &Traverse
Self - Contained Hydraulics
Mandrel Uncoiler
Powered Hold-Down Roll
Feed-Up Motor
Powered Expansion
Wichita Brake
Sliding Base
Hydraulic Peeling Table
Entry Mechanical Shear
PVC Material Applicator
Driven Entry Pinch Rolls
Two (2) Slitting Heads
Dual Injection Design
Arbor Diameter:5" &7"
Powered Arbor Adjustment
Motor:75HP DC
Two (2) Hydraulic Scrap Winders
Manual Drop
Pit Cross Over Table
Powered In &Out
Drag Board Tension Stand
Strip Separating Bar with Tooling
Rotary Tension Stand
14" Diameter Coated Tension Rolls
Recoiler
2-Speed Gear Box
Powered Gripper
Hydraulic Push-Off
Powered Over-Arm Separator
Motor:150HP DC
Exit L-Type Coil Car
Hydraulic Lift &Traverse
Self - Contained Hydraulics
Electrics,Hydraulics,Controls,Knifes &Tooling,
Spare Parts
