Unholtz Dickie(UD)1500G Shock test+진동시험기 Electrodynamic vibration shaker system

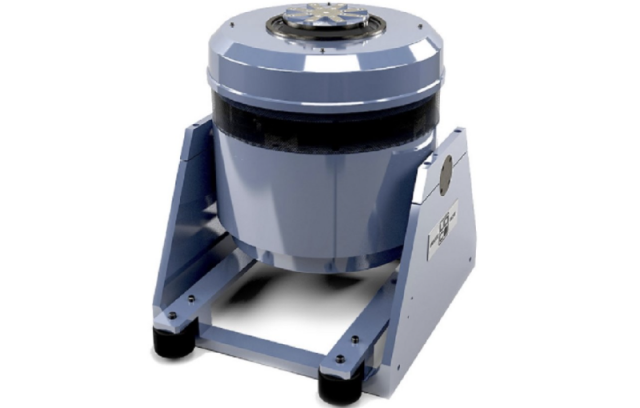

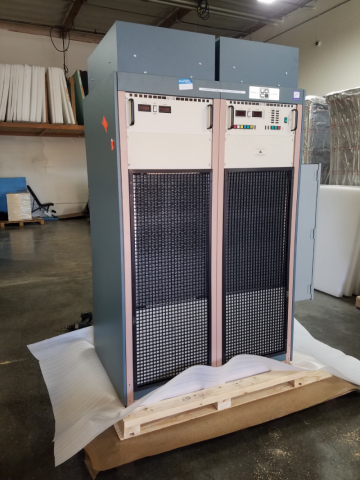

Unholtz Dickie Remarks!!!!: UD에서 진동시험기로 1500G 충격시험이 가능한 고출력 AMPLIFIER를 채택한 진동시험기 입니다.Model;S092MX Industrial Electrodynamic Test ShakerAmplifier :2XSAI120-S092-UX/PB amplifier control cabinetPower :480V,60Hz.120KVA 특수 AMPLIFIER for high shock testMax force 4.4 kNArmature weight with inserts 10 lbs (4.5 kg)1500 g SHOCK!2 inch (51 mm) displacement (intermittent)7 inch (178 mm) diameter armature,6 inch (152 mm) outer bolt hole circlePedestal baseLinear and switching power amplifier configurationsCompletely air-cooledEasy installationCombined environment supportSA-Command Link APEX SL / amplifier remote interface (SA Series amplifiers only)
