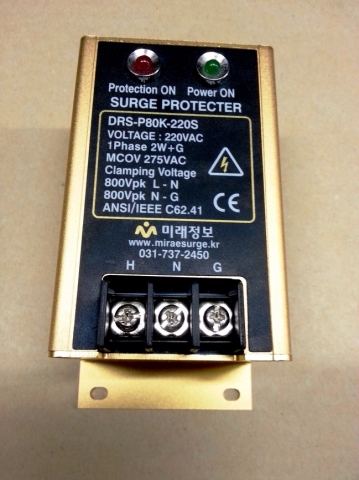

Power Surge Protector (Terminal Block)

DRS-P80K AC PowerSurge Protector(Distribution Board and UPS Protection)UPS and Distribution Board Protection Surge Protector Features1) Rated Voltage: 600VAC or less, 1~3P phase, 60Hz2) Maximum Continuous Operating Voltage is at least 125% of rated voltage3) Maximum Surge Current Rating is 80kA(8/20us)/Mode, 160kA(8/20us)/Phase or higher4) Surge Suppression Voltage: 1.2/50us 6KV, 8/20us 3KA surge test waveform for 220VAC use or less 800V peak5) Short-circuit and overcurrent protection and overheating prevention circuits built-in6) Protected elements consist of MOV (Metal Oxide Varistor), designed to protect against repeatedly incoming surges7) Can be applied to both single-phase and three-phase without changing the design8) Optional EMI/RF FILTER can be built-in9) Display function for visual identification of power and operation status10) Fault Alarm function built-in11) Paralleled connection device connected in parallel with power12) Protection for all surges between L-L, L-N, L-G, and N-G13) Surge response time is 1 nano-second or less14) Materials and components used are physically robust and meet KS standard or higherSpecifications Model DRS-P80K-(110/220/380/480/600V) Max Surge Capacity 80KA(8/20us)/Mode, 160KA(8/20us)/Phase Max OPerating Voltage 125% or more of rated Response Speed 1 nanosecond or less Protection Mode L-L, L-N, L-G, N-G Protection Element MOV (Metal Oxide Varistor) Hybrid Technology Status Indication LED (Power ON & Protection ON) Indicator Alarm Fault Alarm Function Built-in Short Circuit Short-circuit current and overheat protection with Thermal Fuse (80°C) built-in Filitering Function -50dB(10KHz ~ 100KHz) Connection Method Parallel connection Rated Frequency 50-60 Hz Storage Temperature -40 F to 158 F (-40 C to 85 C) Operating Temperature -40 F to 158 F (-40 C to 70 C) Outer Dimensions 160 × 110 × 75 mm Test Certification 1.2/50us 6kV, 8/20us 3kA Surge Certification Standard Applied Meet UL1449, UL1283 Applications Equipment AVR, UPS & Sub Distribution Panel( Distribution Board), etc. Other ANSI/IEEE C62.41 Cat B & C Applies DRS-80K Model Selection Guide Model Rated Voltage Operating Voltage Suppression Voltage Remarks DRS-P80K-120S 120VAC, 1φ 2W+G 150VAC 400V peak DRS-P80K-120Y 120/208V, 3φ 4W+G 150VAC 400V peak DRS-P80K-220D 220VAC, 3φ 3W+G 320VAC 800V peak DRS-P80K-220S 220VAC, 1φ 2W+G 320VAC 800V peak DRS-P80K-220Y 220/380V, 3φ 4W+G 320VAC 800V peak DRS-P80K-277Y 277/480V, 3φ 4W+G 320VAC 800V peak DRS-P80K-240H 120/240V, 3φ 4W+G 150VAC 800V peak Hi-Leg DRS-P80K-480D 480VAC, 3φ 3W+G 550VAC 1200V peak Applications Equipment AVR, UPS & Sub Distribution Panel(Distribution Board), etc. Other ANSI/IEEE C62.41 Cat B & C Applies DRS-80K Model Selection Guide Model Rated Voltage Operating Voltage Suppression Voltage Remarks DRS-P80K-120S 120VAC, 1φ 2W+G 150VAC 400V peak DRS-P80K-120Y 120/208V, 3φ 4W+G 150VAC 400V peak DRS-P80K-220D 220VAC, 3φ 3W+G 320VAC 800V peak DRS-P80K-220S 220VAC, 1φ 2W+G 320VAC 800V peak DRS-P80K-220Y 220/380V, 3φ 4W+G 320VAC 800V peak DRS-P80K-277Y 277/480V, 3φ 4W+G 320VAC 800V peak DRS-P80K-240H 120/240V, 3φ 4W+G 150VAC 800V peak Hi-Leg DRS-P80K-480D 480VAC, 3φ 3W+G 550VAC 1200V peak Applications Equipment AVR, UPS & Sub Distribution Panel( Distribution Board), etc. Other ANSI/IEEE C62.41 Cat B & C Applies DRS-80K Model Selection Guide Model Rated Voltage Operating Voltage Suppression Voltage Remarks DRS-P80K-120S 120VAC, 1φ 2W+G 150VAC 400V peak DRS-P80K-120Y 120/208V, 3φ 4W+G 150VAC 400V peak DRS-P80K-220D 220VAC, 3φ 3W+G 320VAC 800V peak DRS-P80K-220S 220VAC, 1φ 2W+G 320VAC 800V peak DRS-P80K-220Y 220/380V, 3φ 4W+G 320VAC 800V peak DRS-P80K-277Y 277/480V, 3φ 4W+G 320VAC 800V peak DRS-P80K-240H 120/240V, 3φ 4W+G 150VAC 800V peak Hi-Leg DRS-P80K-480D 480VAC, 3φ 3W+G 550VAC 1200V peak ApplicationsCompany(Joo) Shinseong ElecCom
