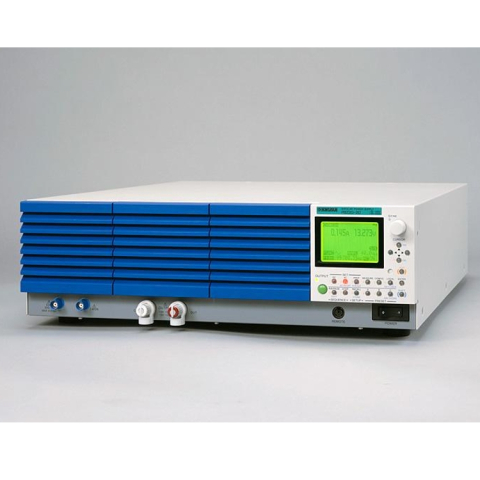

KIKUSUI PBZ Series Intelligent Bipolar Power Supply

The PBZ series is a bipolar DC stabilization power source that can change the +, - anode type through 0 continuously without switching the output terminal.Low ripple while realizing light weight by adopting the "switching" + "linear" method?High-speed operation is also possible with noise. Power can be supplied (sourced) by the four upper limit operation and absorbed (sink) at the same time, so that inductive loads or capacitive loads can be driven. In addition, it is equipped with a signal generation function, so you can freely generate waveforms and set sequences. In addition, it is equipped with a synchronous operation function that is essential for power fluctuation tests and a parallel operation function that expands the output current.Supports 6x the characteristic peak current output rating (PBZ20-20A) Synchronization operation function (trigger synchronization, clock synchronization, trigger, clock synchronization function) Parallel operation function (two identical models, up to five) waveform generation?Sequence Functional Ripple, Noise (CV Mode) Bipolar/Unipolar Mode Switching Rack System (PBZ SR/BP Series)Six times peak current output rating (PBZ20-20A) In CV mode, the PBZ20-20A can generate short-term peak current up to six times the rating when the current response is set to 1 ms.In other response settings, current limit enabled operators can safely use the device without 6x peak current output.If the current response is set to 1 ms, it automatically decelerates the PBZ20-20A response speed and enables peak current output while the current limit is off.This means that when a short-term peak current is not output, the current function operates and does not affect the current response in CC mode. The short-term peak current output is available in both bipolar and unipolar modes.Synchronized operation function This function synchronizes each power output when executing a sequence using multiple PBZs. There are trigger synchronization, clock synchronization, trigger, and clock synchronization functions. (Synchronized up to 5 units)Parallel operation function This is a function that extends the output current. It responds by parallel connection to the required current value. With the same model, 2 standard and 3 to 5 parallel operations (consultation requests) are possible.Wave generation?Sequence functional waveforms can be easily created freely. In addition to sinusoidal, square, and triangular waves, 16 types of parameters are installed, which are arbitrary waveforms, and various patterns can be reproduced by sequence setting in 1024 steps.Low riffle, noise (CV mode) Riffle 2mVrms, noise 20mVp-p realized. (PBZ20-20)*PBZ40-10 : Riffle 4 mVrms, noise 20 mVp-p*PBZ60-6.7 : Riffle 4 mVp-p*PBZ80-5 : Riffle 4 mVrms, noise 30 mVp-pThe maximum value of the bipolar/unipolar mode conversion sink power is 100W (PBZ20-20)* in bipolar mode and 400W in unipolar mode, limiting the operating area.*PBZ40-10: 180W, PBZ60-6.7/PBZ80-5:200WOther CV/CC selection memory function protection functions (overvoltage/overcurrent/overheat/power limit)FINE setting function Key lock remote sensing output voltage, current monitor external voltage, resistance control external signal input status signal outputRack system (PBZ SR/BP series) The PBZ SR/BP series is a large-capacity bipolar DC stabilization power source. A high-current (up to ±100A) model based on the intelligent bipolar power PBZ series and assembled with a dedicated rack part (smart rack). It is suitable for driving inductive loads or capacitive loads because it can supply (source) power and absorb (sink) at the same time by four upper limit operations. A function generator (signal generation function) is built in to freely generate waveforms and set sequences. In addition, LAN, USB, GPIB, and RS232C are standardized on the communication interface.Line up model specifications PBZ20-20A±020V / ±0?20A, 6x peak current support PBZ20-20±0?20V / ±0?20APBZ20-20 with LAN±0?20V / ±0?20A, LAN interface equipment (LXI-compatible) PBZ40-10±0?40V / ±0?10APBZ40-10 with LAN±0?40V / ±0?10A, LAN interface equipment (LXI-compatible) PBZ60-6.7±0?60V / ±0?6.7APBZ60-.7 with LAN±0?60V / ±0?6.7A, LAN interface equipment (LXI-compatible) PBZ80-5±0?80V / ±0.5APBZ80-5 with LAN±0?80V / ±0.5A, LAN interface equipment (LXI-compatible) PBZ20-60 SR±0?20V / ±0?60A, LAN interface equipment (LXI-compatible) PBZ20-80 SR±0?20V / ±0?80A, LAN interface equipment (LXI-compatible) PBZ20-100 SR±0?20V / ±0?100A, LAN interface (LXI-compatible) PBZ40-30 SR±0?40V / ±0?30A, LAN interface (LXI-compatible) PBZ40-40 SR±0?40V / ±0?40A, LAN interface (LXI-compatible) PBZ40-50 SR±0?40V / ±0?50A, LAN interface (LXI-compatible) PBZ60-20.1 SR±0?60V / ±0?20.1A, LAN interface (LXI-compatible) PBZ60-26.8 SR±0?60V / ±0.26, LAN interface (LXI-compatible) PBZ80-15 SR±0?80V / ±0?15A, LAN interface (LXI-compatible) PBZ60-33.5 SR±0?60V / ±0.33.5A, LAN interface (LXI-compatible) PBZ80-20 SR±0?80V / ±0?20A, LAN interface (LXI-compatible) PBZ80-25 SR±0?80V / ±0?25A, LAN interface (LXI-compatible) PBZ20-120 BP±0?20V / ±0?120A, LAN interface (LXI-compatible) PBZ20-140 BP±0?20V / ±0?140A, LAN interface (LXI-compatible) PBZ20-160 BP±0?20V / ±0?160A, LAN interface (LXI-compatible) PBZ20-180 BP±0?20V / ±0?180A, LAN interface (LXI-compatible) PBZ20-200 BP±0?20V / ±0?200A, LAN interface (LXI-compatible) PBZ40-60 BP±0?40V / ±0?60A, LAN interface (LXI-compatible) PBZ40-70 BP±0?40V / ±0?70A, LAN interface (LXI-compatible) PBZ40-80 BP±0?40V / ±0?80A, LAN interface (LXI-compatible) PBZ40-90 BP±0?40V / ±0?90A, LAN interface (LXI-compatible) PBZ40-100 BP±0?40V / ±0?100A, LAN interface (LXI-compatible)Optional (Related Products) Wavy for PBZ Sequence Creation Software for PBZ Series Sequence Creation SoftwareAC8-3P3M-M5C Input Power Cord 8 mm2, 3 mM5 (for PBZ - SR Series)AC14-3P3M-M5C Input Power Cord 14 mm2, 3 mM5 (for PBZ - BP Series)PK01-PBZ Parallel Operation Kit (2 Units) PBZ Series Parallel Operation Kit (2 Units, Desktop)PK02-PK02-PK02-PBC Series Parallel Operation Kit, EIA Rack Embedded)PK03-PBZ Parallel Operation Kit (2 Units) PBZ Series Parallel Operation Kit (2 Units, JIS Rack Embedded)VS01 StandOP01-PBZ-A-NEW-M8 Terminal Connection Kit for connecting the M8 crimp terminal to the PBZ Series OUTPUT terminal block (screw, bus bar, cover, etc.)For the KRB3-TOS bracket bracket (inch size), TOS9201, TOS8870A, PAM (2kW type), PCR1000M (MA), TOS9300, TOS9301, TOS9302, TOS9303, TOS9303LC<br>KRB150-TOS브래킷브래킷(mm 사이즈)용 TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M(MA), PLZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ, PCR1000WE, PCR2000WE, PCR3000WE2, TOS9300, TOS9301, TOS9302, TOS9303, TOS9303LC<br><br><br><br><br>
