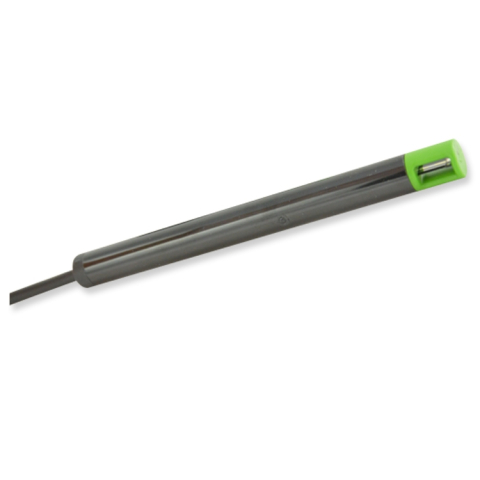

E+E EE671 Compact Air Flow Probe for HVAC

HVAC Miniature Air Flow ProbeEE671 is a compact air velocity probe for HVAC applications. The built-in flow sensing element VTQ combines the advantages of state-of-the-art E+E thin-film manufacturing and of the newest transfer molding technology.It operates on the hot-film anemometer principle and ensures high accuracy and reproducibility as well as long-term stability and outstanding resistance to pollutants.EE671 is available with fix installed cable or with plug connection. The measured air velocity up to 20 m/s (4000 ft/min) is available at voltage output 0 - 1 V, 0 - 5 V or 0 - 10 V or on the Modbus RTU interface.The alignment nut on the probe and the matching mounting flange simplify the installation, the correct orientation in the air flow and the precise control of the immersion depth.With an optional configuration kit the user can set via a digital setup interface the output configuration and perform an adjustment of the probe.Typical ApplicationsHeating and ventilation systemsFlow monitoring and controlInlet air monitoring in ovensSigma 05 - Modular Sensor PlatformThe EE671 is compatible with the Sigma 05 host device of the E+E Modular Sensor Platform. Together they become a versatile, plugand-play RH / T modular sensor with analogue outputs and optional display. Besides EE072, Sigma 05 accommodates also other E+E intelligent sensing probes.주요기능High accuracy and long-term stabilityOutstanding resistance to contaminationEasy and quick mountingUser configurable기술자료 MEASURING RANGE0...5m/s (0...1000ft/min)0...10m/s (0...2000ft/min)0...15m/s (0...3000ft/min)0...20m/s (0...4000ft/min)ACCURACY0.5... 5m/s: ±(0.2m/s (40ft/min) +3% of MV)1... 10m/s: ±(0.3m/s (60ft/min) +4% of MV)1... 15m/s: ±(0.35m/s (70ft/min) +5% of MV)1... 20m/s: ±(0.4m/s (80ft/min) +6% of MV)OUTPUTS0-1/5/10 V (max. 1 mA)Modbus RTUSUPPLY10-29V DC SELV
