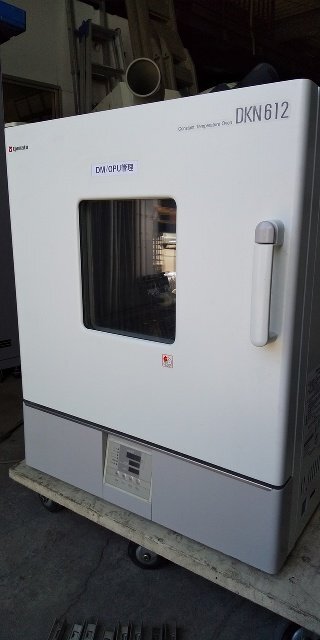

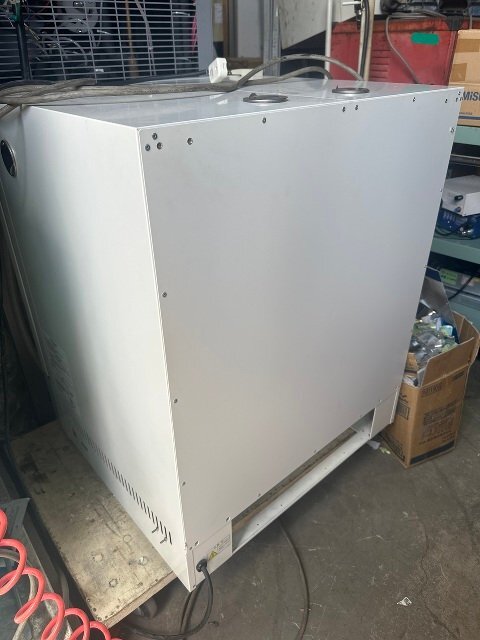

고온 오븐DKN612, High temperature oven, furnace,Precision high temperature

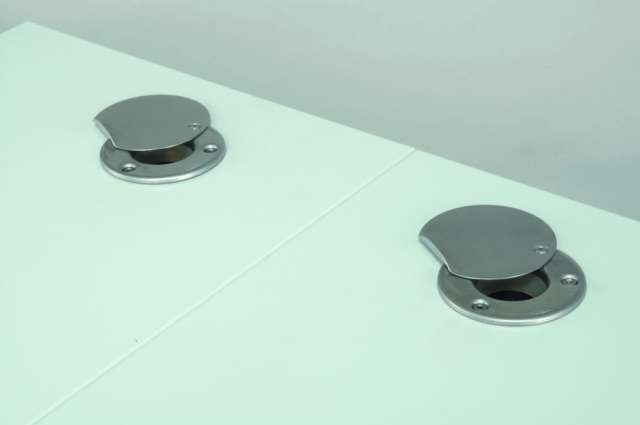

Specifications  Model DKN612 Circulation method Forced air circulation Operating temp. range Room temp. +10°C to 250°C Temp. adjustment accuracy ±1℃（at 210℃） Temp. distribution accuracy ±2.5℃（at 210℃） Max. temp. reaching time Approx. 120 min. Interior/Exterior material Stainless steel / Cold rolled steel plate with melamine resin baking finish Heat insulating material Glass wool Heater Stainless pipe heater Heater 1.34 kW Fan Type / Fan Motor Scirocco fan, Condenser type motor Cable hole 30mm I.D. (on the right side) 1pc. Exhaust port 30mm I.D. x 2 (on top) Observation window 250×280mm Chemical strengthening glass x 3 Temp. controller PID control by microprocessor Temp. setting method Digital setting by UP/DOWN key Temp. display Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED Timer 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function Operation function Fixed temperature operation, Program operation, Auto start, Quick Auto-stop Program mode Program operation : 30 steps (30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function Additional functions Calibration off-set function, Key lock, Uninterruptible power for memory Heater circuit control SSR control Sensor K-thermocouple Safety device Self diagnosis functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection Shelf plate with standard load ~15kg/piece Shelf support step number/pitch 13 steps / 30mm Shelf plate Stainless steel, 1pc on the bottom screwed Shelf plate / support 2 pcs. / 4 pcs. Internal dimensions 600×500×500mm（W×D×H mm） External dimensions 710×651×870mm（W×D×H mm） Remarks(dimensions) 150L Power Source AC220V 7A Single-phase Weight 65kg Conditions: temperature and humidity: 23 deg.C+/-5 deg.C, 65%RH+/-20% (no load) External dimensions do not include protrusions.
