Cyclic

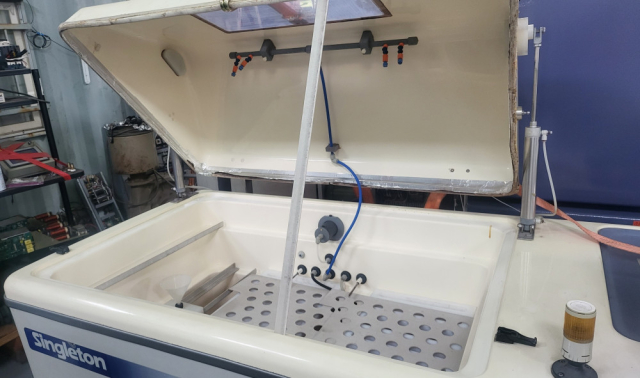

Corrosion test chamberCyclic TEST 는 Salt Fog, salt spray,

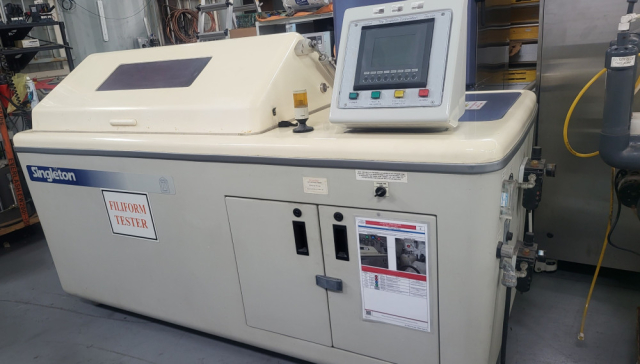

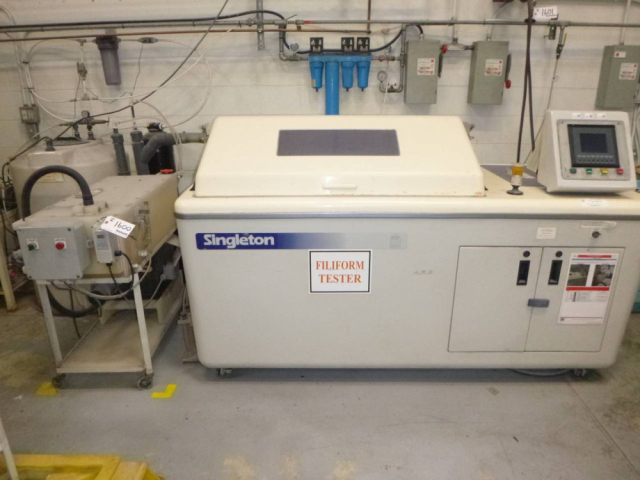

, controlled humidity cycles, dry, soak and ambient conditions, 건조 step시험을 다양하게 조합하는 cyclic corrosion test 입니다.Touch screen controller, 현재도 생산되는 동일 모델임.특히 자동차관련 시험에 많이 사용하며 자동차 표면의 부식 시험에 사용 합니다.Filiform test 에 적합한 장비 입니다. 도장내부철판에FILIFORM이 형성된 상태사진임Cyclic Tests include combinations of salt fog/spray, controlled
humidity cycles, dry, soak and ambient conditionsOverview
Cyclic Chambers are used for cyclic corrosion testing
throughout the automotive, aerospace, coating, electronics, fasteners, and
paints industries!
Whether you have been conducting cyclic corrosion testing
for years or are new to it, you will find Cyclic Corrosion Chambers
by the Singleton Corporation reliable,
easy to use and operate. They are built to provide the accuracy and flexibility
necessary to meet today's stringent test methods.
Fully
automatic operation.
Up
to 16 pre-programmed tests.

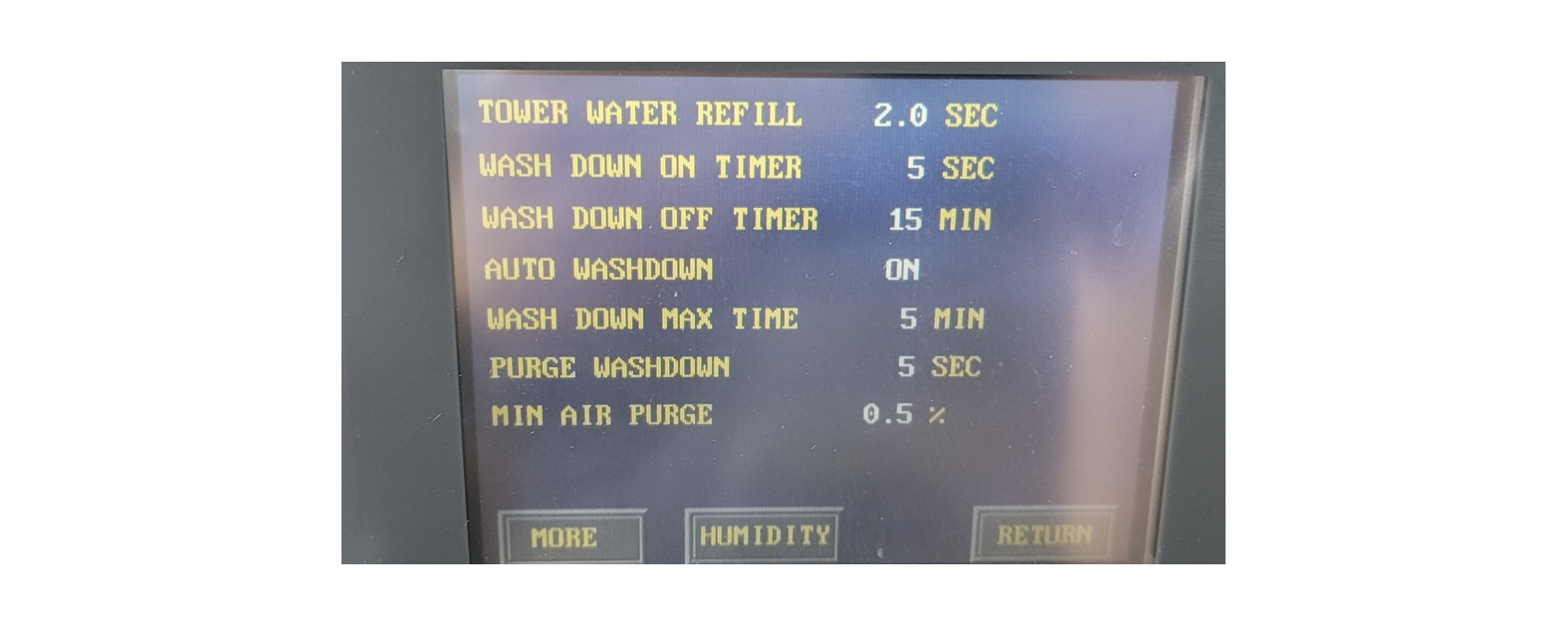

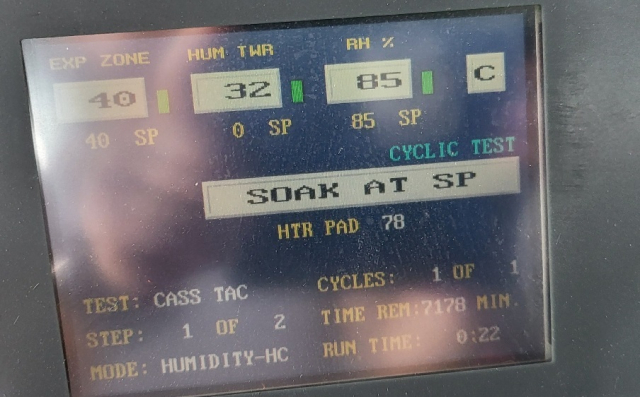

Color
touch screen controls.
8
User-Defined Profiles with up to 20 steps and 12 environmental conditions
are included to create your own tests.
50

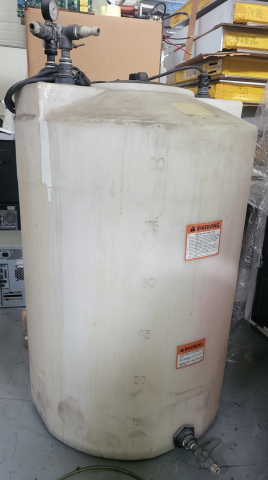

gallon solution reservoir with see-through removable cover.

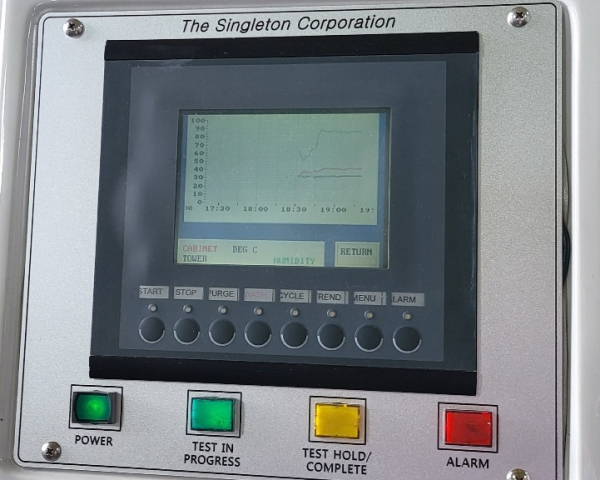

On-board
data logging and trending.
Precise
testing at economical pricing.
RH
Select Humidity Control between 30-100%.
Testing
and Certifications on all instrumentation to NIST standards prior to
shipment.
All of our Cyclic Corrosion Test Chambers have the
necessary test specifications pre-programmed in the control
system. Test specifications include; the SAE J 2334, ASTM G85 Annex 5, GM
9540P, GMW 14872, ASTM
B117, and ASTM D1735. There is room for more, 16 in total, if you can
provide the relevant specifications we can pre-program it for you.
Data Logging
Test data is stored locally on an internal Secure Digital
(SD) card. The data can be transferred to a computer for further analysis by
either copying it from the SD memory card or using FTP to transfer over
the local network.
RH Select Humidity Control (patent#5824918)
Permits selectable/programmable humidity exposure conditions
from 30-100% (except as limited by extreme ambient temperature conditions).
Controlled and displayed at the touch screen operator interface. Required to
perform ASTM G85 Annex 5, GM 9540 P, GMW 14872, and SAE J 2334. The RH Select
Humidity Control includes the Humidity Sensor Shielding System. This
system provides precise testings and readings for more aggressive
environments.
Additional Environmental
Testing Chambers that we carry:
SCCH
- Salt
Fog Chamber.
Sizes are available ranging from 9.3 cubic feet to 2,508 cubic feet.
DUST
- Dust
Chambers.
Meeting all requirements for the SAE J 575 and GM 9103 P test
specifications.
WITT
- Water
Immersion Testing Systems.
Meeting all requirements for the ASTM D870 test specifications.
Technical information
Temperature Range
Ambient to 140°F/60°C
Humidity Range
30-100% (+/- 3%)
Drain
Access to a floor drain is required
Exhaust
Vent to the outside or see additional option
Warranty
One year limited warranty
Model #
Sample Space Volume*
Inside Dimensions
Outside Dimenesions
240/1
240/3
480/3
CCT10
21ft3
48 x 33 x 24 in
84 x 42 x 54 in
16
10
Option
Chamber
Salt
Fog Test Start Up Package (Part # 500110)
Includes two collector funnels with graduated cylinders, one
50lb bag of salt, and one specific gravity hydrometer. All items comply with
ASTM B117. Also available as individual items.
Salt Fog Start Up Package (Part # 500111)
Same as 500110 except that it includes four collector
funnels with graduated cylinders instead of two. For larger corrosion test
chambers that have more than one fogging tower.
External Condensate Collection Package (Part # 500120)
The External Condensate Collection Package provides sampling
of fog condensate without opening the chamber or interruping testing.
Complete with two condensation collector assemblies mounted externally on stand
and piped to collector funnels mounted in exposure zone
External Condensate Collection Package (Part # 500140)
Same as 500140 except that it includes four condensation
collector assemblies mounted externally on stand and piped to collector funnels
mounted in exposure zone. For larger corrosion test chambers that have more
than one fogging tower.
Ontario Hydro Wiring Package (Canada Only)
Wiring to conform to Ontario Hydro Wiring Standards.
Exhaust
Re-circulating Exhaust Condenser System (Part # 503360)
System condenses and collects chamber exhaust into a
separate 24 gallon reservoir mounted on Level-Matic® stand. System is
completely self-contained, no outside vent required.
Salt Solution Convenience
Auxiliary Salt Solution Mixing and Storage Tank* (Part #
503600)
Separate polypropylene tank with re-circulating/mixing pump
and filtration system for homogeneous/uniform solution makeup. Pump system also
permits transfer of solution to test apparatus. Includes aeration/ air sparger
system and controls for unattended mixing of salt solution. Mounted on a
portable stand with casters. Available in 55-gallon capacity. Very convenient
for multiple chamber installations.
