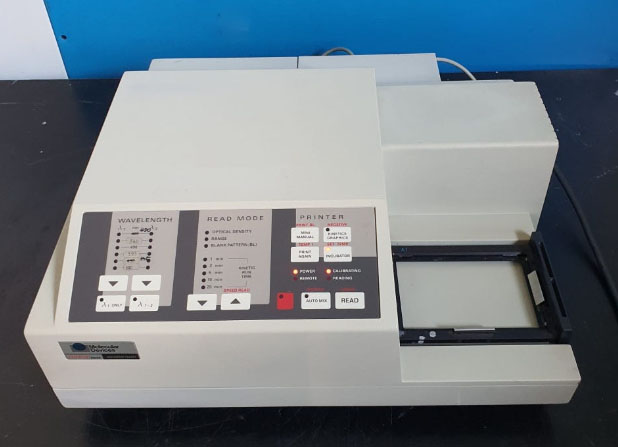

MICROPLATE READER

MICROPLATE READERMODEL : THERMO MAXMAKER : MOLECULAR DEVICESSpecificationsPhotometric Range0.000 to 4.200 OD (340-750 nm)Kinetic Read Time5 second minimum between readingsEndpoint Read Time6 secondsModesSingle wavelength, Dual wavelength, Kinetics, Range, Blank patternStandard Set of Filters340, 405, 450, 490, 650. Additional filters are available.Resolution0.001 OD (340-750 nm)Photometric accuracy0.0022 ? 3.3 ?; 0.5 second measurements at 350 nmLight SourceTungsten halogen (25 watts)Average Light Source Lifetime>750 hoursCalibrationSelf calibratingDriftZero due to digital signal processingOptical AlignmentNone required during lifetime of instrumentPhotodetectorsSilicon (UV enhanced)Filter Capacity/strong>SixFilter StructureThree cavity interference filter with enhanced blockingReading ChamberLight-tight during reads and calibrationControl Panel13 direct keys plus 7 shift key functions displayed on an easy-to-use touch membraneComputer InterfaceRS232 (bidirectional control)Printer InterfaceCentronics parallelMicroplate CarrierAccommodates standard 96-well microplates and filterbottom microplatesPhotometric StabilizationTemperature Set PointRange: 15.0 to 42.0oCResolution: +/- 0.1oCRepeatability: +/- 0.3oCAccuracy: +/- 0.5oCRegulation: +/- 0.3oCSize181/4 x 161/4 x 73/8 inches ( 47 x 41 x 19 cm)Weight27 lbs (12.3 kg)Power ConsumptionLine Voltage100-120 VAC or 200-240 VACLine Frequency50/60 HzOperating Temperature+15 to +40oC (+60 to 108oF)Operating Humidity0 to 85% (non-condensing)Storage-20 to +65oC (-5 to 150oF)
