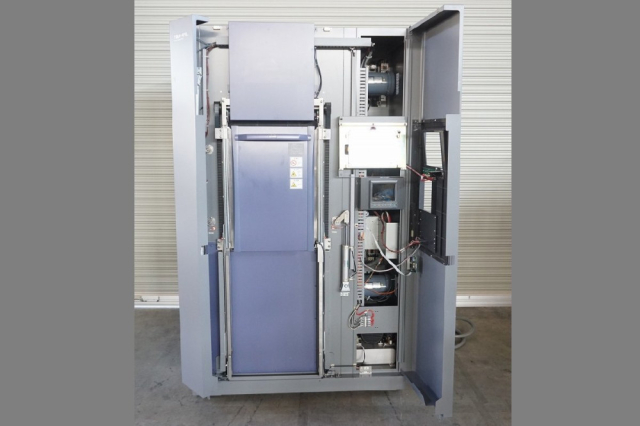

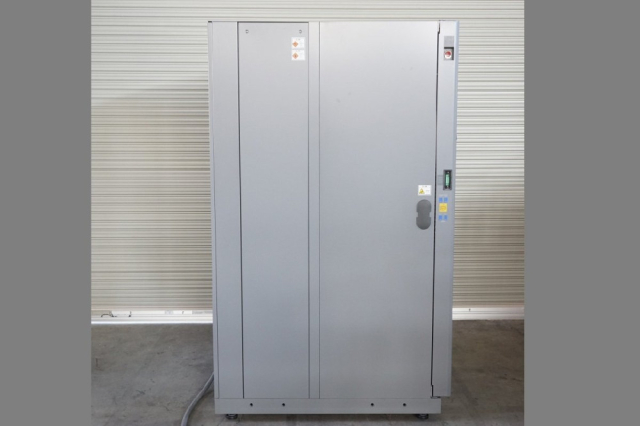

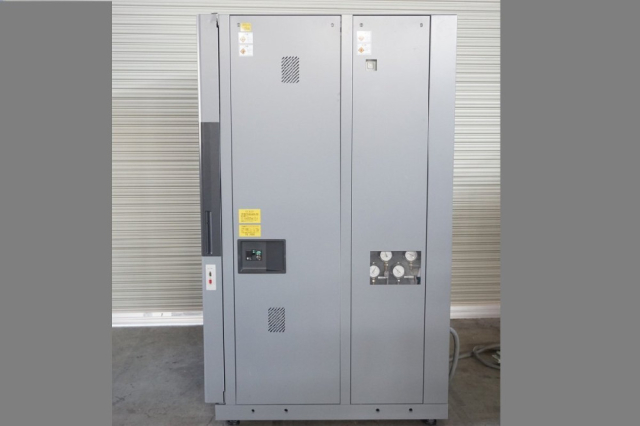

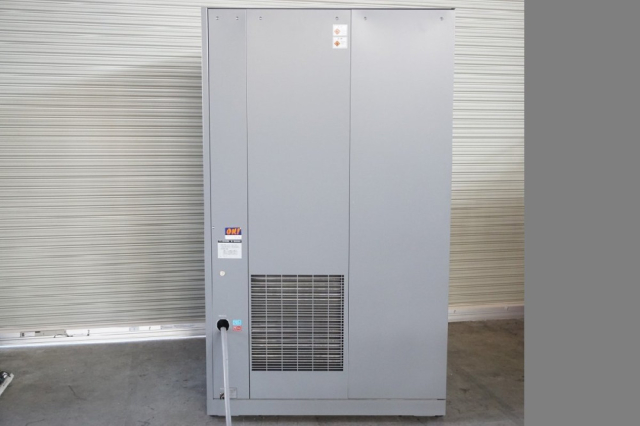

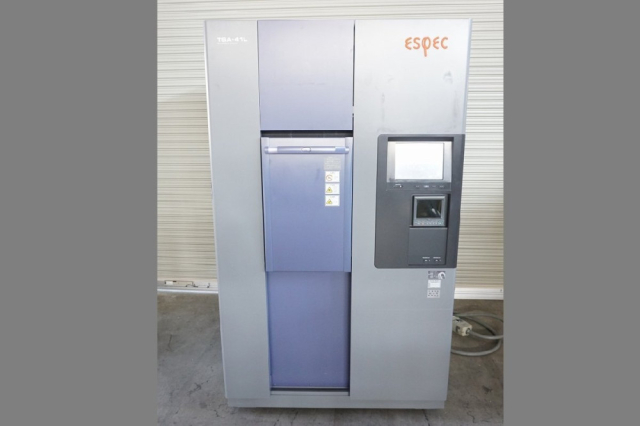

열충격시험기 Damper Type, thermalshock test chamber

Model : TSA-41L-A   ·       Air cooling (공냉식) ·        Temperature range : +60~200°C -65~0°C ·        Inside dimensions : W240×H460×D370mm ·        Outside dimensions : W1140×H1950×D1370mm*   2  or 3 zone system by means of damper switching.*   Heat-up rate  amb temp to 200°C : within 10min*   Ambient temp to 200°C : 75 min*   Recovery time : 5 min with 3.5kg specimen weight plastic ·        Weight : Approx.730 kg ·        Power supply : AC220V within 10%  3φ 3W  50/60Hz MAX.47A ·        2010 vintage ·        Working hours : Approx.4600 ·        System : Two-zone or three-zone test by means of damper switching ·        Shelf brackets (specimen baskets) : 2 ·        Cable port : 25×100mm(long hole)x1(left side) ·        Accessories : Caster
