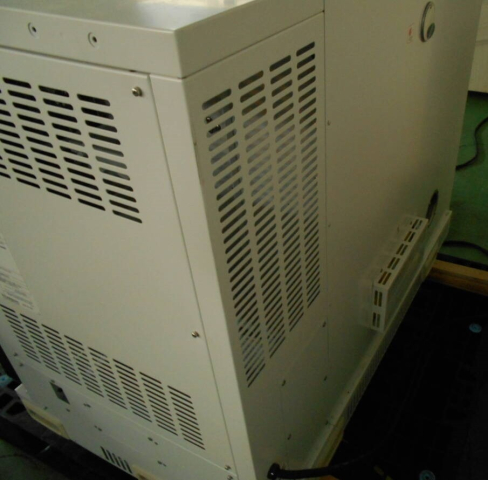

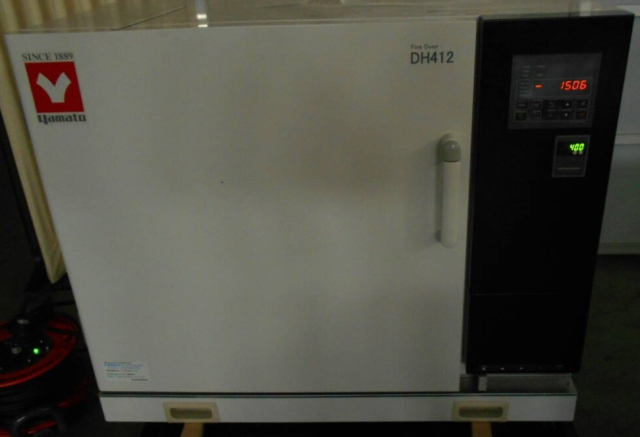

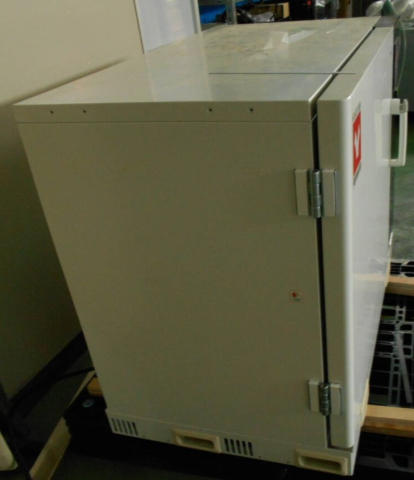

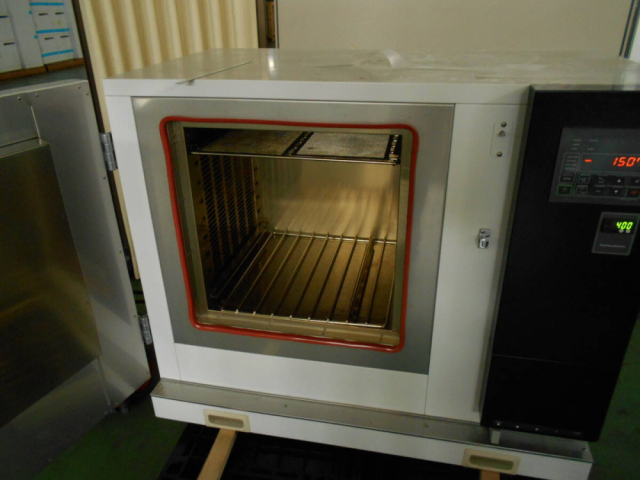

360℃ 정밀제어오븐 (Fine Oven)

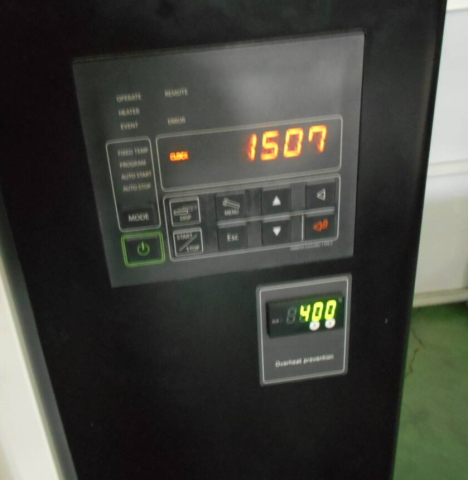

Specifications Model DH412 System Forced convection and ventilation Operating temp. range Room temp. + 15 to 360℃ Temp. control accuracy (JTM K05) ±0.2℃（at 360℃） Temp. fluctuation (JIS) 2.0℃（at 360℃） Temp. distribution accuracy (JTM K05) ±2.5℃（at 360℃） Temp. gradient (JIS) 12℃（at 360℃） Time to attain max. temp. Approx. 60 min. (to 360℃) Temp. control system PID control with a micro computer Temp. and time setting system Digital Setting by UP/DOWN Key Timer display range 1 min. to 99 hr 59 min. and 24hr. setting Operation and manipulation functions Fixed temp., Auto-start, Auto-stop, Quick auto stop, program (Max.99 steps, 99 patterns, repeat) Additional functions Calendar timer (max. 24 Hrs.), Integration time (max. 65535Hrs.), Clock, Calibration off-set, Display the amount of Power consumption Additional functions CO2 discharge/Heater operation amount, Power failure recovery mode, User setting information save and recall, Wind velocity changeable function Sensor Double K-thermocouple Heater Stainless pipe heater Blower fan (motor) Axial flow fan (capacitor motor) Cable port I.D. 33 mm x 1pc (rear) Heat insulator Glass wool Safety device Self diagnosis functions(Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention), Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch No.of shelf stages/peg pitch 9 stages/45 mm Accessories Shelf 2 pcs Accessories Shelf support 4 pcs Internal dimensions（W×D×H mm） 450×450×450mm External dimensions（W×D×H mm） 1050×630×850mm Remarks(dimensions) 91L Power Source AC220V 13A Single-phase Weight 112kg
