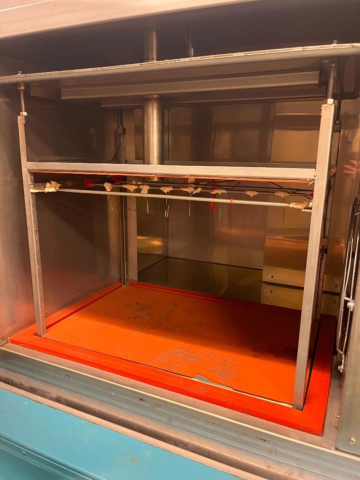

열충격시험기 ELEVATION TYPE

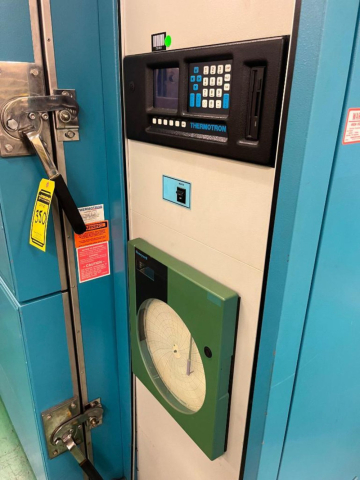

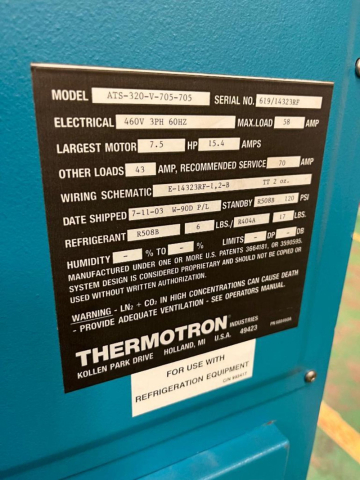

MODEL :ATS-320-V-705-705 (Vertical 2 zones )   1.     Manufacturer :Thermotron Industry,Michigan,USA 2.     Specification   l Model :ATS-320-705-705-V- LN2          ATS: Automatic Thermal-shock Environmental test System                 320:Basket size (product carrier,3200 Cu. Ft. test space)                 705-705 :7.5 마력 냉동기 cascade condenser refrigeration system                 V:Vertical basket transfer movement                 LN2:Liquid Nitrogen boost cooling system l Vertical two zone system l  Product carrier (basket) size:25"w x 15"d x 15"h(64cmx38cmx38cm) l Max product load :80 Pounds 36KG l Temperature range :Cold chamber;-73 °C to 177 °C                     Hot chamber ;Ambient temp to 200 °C l Thermal shock test :-65 °C / 150 °C,10 soak time,5 min recovery time test 가능함. l LN2 assist cooling to -187°C l Dual stage 7.5 Horse power cascade refrigeration system l Controller :7825 controller (programmable logic controller) l 460 Volt 3PH l Left hinge door with observation window l Two internal lights l Multi-pane window 25cm. x 25cm l 4ea refrigeration gauges l 1 ea moving access port with basket l 냉매가스 ;R-404A,R-23 GAS l digital recorder (6 anlog inputs 까지 가능) l 냉동 system의 cooling 은 수냉식임. l Warranty service :1년 standard. l Utility :dried & filtered air supply,전기,cooling water supply는 customer scope 임.
