중국 와이어 컷 가공기의 모든 것 상중하급

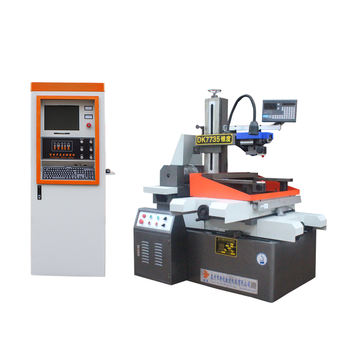

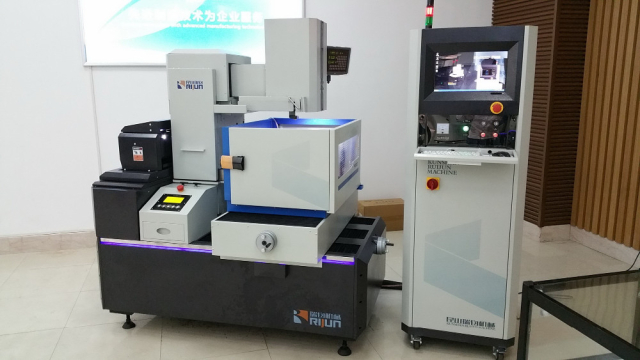

중국 와이어컷 의 모든 것 Product detailswire cutting machine FR-400G New DesignStandard Configuration:1) Window XP System with Auto-CAD software control System.2) PANASONIC converter ( Japan Panasonic )3) "C" Structure HTK Casting Machine Body ( Japan HTK )4) Standard DRO and Z axis motorized drive up and down.5) Hiwin brand linear guide way install on XYZUV 5 axis ( P lever )6) Hiwin brand ball screw install on XYZUV 5 axis ( C3 lever )7) Automatic center lubrication system. (Not manual )8) LED Inside light (Not outside bulb)9) Automatic double direction wire tension system10) Standard ±6 degree taper cutting system11) PHILIPS Industrial Computer (Philips Europe)12) Automatic parameter generating system.Cooperate Suppliers:Linear guide way and ball screw supplier (HINWIN Taiwan)Bearing supplier (NSK Japan )Motor,Driver and Electric accessories supplier ( SIEMENS German)Electric accessories supplier ( NCC Japan )Transducer (converter) ( PANASONIC Japan)Servo driver supplier ( YASKAWA Japan )Handle Remote supplier (EUCHNER German )Industrial control system supplier (PHILIPS Europe)Machine Featurers:1) Parameter is not required to put in, Artificial Intelligence works out perfect parameter immediately after putting in cutting thickness and wire diameter,Different accuracy based on different workers with different experience will be solved.  2) Roughness:Ra ≤0.8um3) 3 Time Cutting thickness :≥200mm4) Max Machining Speed:200mm2/minFactory Situation:1). More than 1500 Sets Wire Cut Machine can be sold out in Chinese market each year.2). Over 8000 sets EDM machines installed in China or other countries.3). 8 steps checking for each machine by more than 25 QCS.4). 20 years experience on EDM Machines (From 1997) ,300 employees.5). 20 research personnel for developing new models or accessories. ItemunitFR-400G/M/SFR-500G/M/SFR-600G/M/SFR-700G/M/SWorktable size (L×W)mm550*680580*770680*940720*1040Table travel(X×Y)mm300*400350*500400*600450*700Max. work piece thicknessmm250250300300U.V axismm    20*20 20*20 20*20 20*20Max. taper angle/plate thicknessdegree/mm±6°/80mm    G model±12°/80mm   M model ±6°/80mm    S model Motor typestep or servo G model   Step motor M model    Step motor  S model    Servo motorWire diametermm0.16-0.200.16-0.200.16-0.200.16-0.20Machine accuracyOctagonmm ±0.005  ±0.005  ±0.005  ±0.005Anglemm  0.012 0.0120.0120.012Roughness,thrice cuttingum≤0.8≤0.8≤0.8≤0.8Max. machining speedmm²/min200200200200Machine dimensions(W×L×H)mm1160*1650*18501300*1770*18801540*1920*20201730*2020*2080Machine weightKg1500170020002300Controller dimensions(W×L×H)Mm600*800*1800600*800*1800600*800*1800600*800*1800Wire traveling speedm/min5-115-115-115-11Load of tableKg350400500600Rated PowerKVA3333Water tank dimension(W×L×H)mm580*960*660580*960*660580*960*660580*960*660Working reservoir capacityL150150150150 Factory PicturesProduct IntroductionConsidering the main problems existing in the old type Fast Speed wire cut machine such as low cutting precision,bad surface finishing and slow cutting speed,while the brass wire cut machine is much more expensive and difficult to learn,we develop the second generation Middle Speed Wire Cutting machine based on the technology from Brass wire cut machine,deeply improves the cutting precision,surface finishing (Ra≤0.8um),cutting speed to make the cutting life and technology almost same as brass wire cut machine. But the machine's purchase cost is much lower than brass wire cut machine,the operator who has a little experience of fast speed wire cut machine can use our machine immediately. Comprehensive efficiency is 2 or 3 time as fast speed wire cut machine.We adopt 6 sets high lever linear guide way on the traveling system including X,Y axis and other running accessories,X,Y axis adopts 2 sets high level ball screw. Wire Swing system:the first company adopt linear guide way,make the travel move smoothly without any obstruction,it make sure the swing without any wear,solve the big obstruction,big wear,etc problem from the V shape guide way.Tape or Angle part:UV axis tape unit has got national patent,patent number:2L2008200332261. Perfect design high lever tape unit,make high accuracy for moving and tape cutting. Wire Tension System:National patent number:2L200820000226.7. Adopt double direction wire tension system,keep the wire tension with same strength during the working time,which can protect the wire and reduce the wire broken possibility.중국 와이어 컷 전혀부담없는 가격에 공급합니다 완벽한 시운전 교육도 제공합니다 한국 시장에 본격 판매공급되고 있는 중국 와이어컷가공기 가성비가 만족입니다 문의 010 2845 4417 덕주코리아 ?1. TAIZHOU TERUIProducts DeionTaizhou Terui CNC Machine Co.,Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality,complete models,long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models. The company also produces ±30°,±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped,the precision can reach 0.01mm)3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);4.Molybdenum wire diameter:0.1-0.2mm;5.Max. cutting speed≥120mm^2/min;6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;7.Working fluid:Water-based emulsion.ModelWorktable travel(mm)Worktable size(mm)Max. cutting thickness(mm)Max. load(kg)Dimensions(mm)DK7720200*250420*2702001001250*950*1250DK7725250*320520*3403002001450*900*1500DK7735(32)350(320)*450(400)710*4604003001400*1100*1600DK7745(40)450(400)*550(500)810*5704004501600*1200*1600DK7745F(40F)450(400)*630950*600400/6006001600*1580*1600DK7755(50)550(500)*650(630)950*6507007002000*1500*1900DK7755F(50F)550(500)*8001140*6507007002000*1650*1900DK7763630*8001140*75070010002100*1700*2050DK7763F630*10001350*75070012002250*1850*2050DK7780800*10001350*98090020002400*1900*2350DK7780F800*12001600*105090024002550*1950*2400DK771001000*12001600*1100100026002850*2500*2500DK77100F1000*14001800*1250100028002950*2050*2500DK771201200*14001800*1350100030003050*2750*2500DK77120F1200*16002000*1500100035003100*2850*2500DK771601600*18002000*1700100040003250*3000*2500Details show공급회사 Company ProfileBuyers showCertificatesPackaging&shipping0.18mm molybdenum edm wire0.18mm molybdenum edm wire Feature of molybdenum wire for cnc edm cutting? High melting point,Low density and Thermal coefficients? Good thermal conductivity properties and Resistance of high-temperature? High tensile strength and Low elongation? Good stability and High precision of cutting? High speed and Long stable time of processing? Long lifetime and Non-poisonous Application of molybdenum wire for cnc edm cutting? Electric light source,Electrode? Heating elements,High-temperature components? Wire-electrode cutting? Spraying for auto parts 1. software system 구분X8 혹은 AUTOCAD 둘중 하나 선택(*X8로 중국은추천)ParameterItemQuantityDK77351 setPC,monitor,keyboard,mouse,HL card1 setCNC control cabinet (Desktop/ Vertical control cabinet)1 setAccess to water pipes3 rootWater pump1 setWater tank1 setPlug the control panel with the key1 rootScrew2 rootFactory data1 partEmulsion cream1 setFixture1 setWaterproof cover1 setShake handle1Tight wire1Foot adjustment screw6Adjust the nut at the foot6Detail design????Precision linear guide rail （Default Config）We configure Taiwan precision linear guide rail by default，not only for drum but also X and Y axis.???Color big screen digital display（Default Config）Two axis digital display DRO is configured by default,the x-axis and y-axis move by one eye????Automatic tightening device（Default Config）By default,each machine is equipped with an automatic wire tightening device，Easily solve the problem of loose and broken wires???Wire barrel（Default Config）Wire barrel through high-tech dynamic and static balance process,reducing the drum beating???Non-contact photoelectric induction switch （Default Config）The switch for the photoelectric sensor non-contactreversing switch,the purpose is to increase its service life??High pressure water tank(A default B optional)We provide A type water tank as the default configuration and B type water tank as the optional configuration???Z axis motor(optional) By default,lifting and lowering can be Shaking by hand ， Z-axis motor can automatic lifting function ??SpecificationProduct Informations Taizhou Ruite Machinery Equipment Co.,Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality,complete models,long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models. The company also produces ±30°,±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped,the precision can reach 0.01mm)3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);4.Molybdenum wire diameter:0.1-0.2mm;5.Max. cutting speed≥120mm^2/min;6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;7.Working fluid:Water-based emulsion.ModelWorktable travel(mm)Worktable size(mm)Max. cutting thickness(mm)Max. load(kg)Dimensions(mm)Weight(kg)DK7720200*250490*3802001001200*900*1300800DK7725250*320520*3903002001450*900*15001000DK7735(32)350(320)*450(400)730*4905003001400*1100*16001100DK7745(40)450(400)*550(500)810*5704005001600*1200*16001400DK7745F(40F)450(400)*630950*600400/6006001600*1580*16001600DK7755(50)550(500)*650(630)950*6507007002000*1500*19001800DK7755F(50F)550(500)*8001140*6507007002000*1650*19002000DK7763630*8001140*75070010002100*1700*20502400DK7763F630*10001350*75070012002250*1850*20502800DK7780800*10001350*98090020002400*1900*23504000DK7780F800*12001600*105090024002550*1950*24004500DK771001000*12001600*1100100026002850*2500*25005200DK77100F1000*14001800*1250100028002950*2050*25005800DK771201200*14001800*1350100030003050*2750*25007500DK77120F1200*16002000*1500100035003100*2850*25008400DK771601600*18002000*1700100040003250*3000*250010000Products DeionThe Sample Shows?문의 이메일로 문의요망 sksea99@daum.net 덕주코리아바로바로 메일로 상세견적자료 제공  SIMTOS 2024 중국 덕주부쓰(화천기공옆) 중국 공작기계전반적으로 종합상담 바랍니다네이버블로그 blog.naver.com/skcdzjc 참조후 문의 요망 중국 덕주기상창  선반(수평/수직/대주축경)과딮홀기(보오링/드릴링/SRB/호닝) www.dzjc.com *딮홀기취급전문(보오링기PULL타잎/BTA/건드릴/6축7축/8축 크랭크샤프트 드릴링 머신/실린더가공설비)   중국 웨이다 기상창 밀링/프레너밀러/문형머시닝/래디얼기  www.weida-mc.com *프레너 12M (폭1000/1200/1600MM) * 양두밀링/면치기/각치기/각종 특수 면치기 밀링*래디얼기 특별 규격 제작공급전문중국 상해기상창 원통연마기/롤연마기/평면연마기/로타리연마기 www.smtw.com * 칼날연마기(평날/원형날/각종 특수 칼날 연마기)www.bstsk.com 중국 와이어커팅기  와이어컷팅기의 모든 것 www.teruimachine.com 중국 프레스의 모든 것 초소형 CS 프레스 특별제작  www.goanwin.com 대만 써니 연마기 대만 평면연마기(소형~초대형)www.sunnyfreeport.com  중국 레이져 컷팅기/용접기 www.toptekrobot.com
